Insulation of a masonry wall – wet method

Insulation of a masonry wall with the "light wet" method consists in laying impact resistant VestaEco WALL insulation board. Vapor-permeable board facilitates the outflow of moisture from the masonry wall and forms a base for vapor-permeable plastering. Fixing of the board should be made with the use of glue mortar and screws.

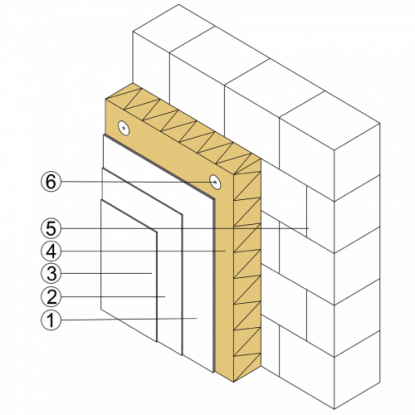

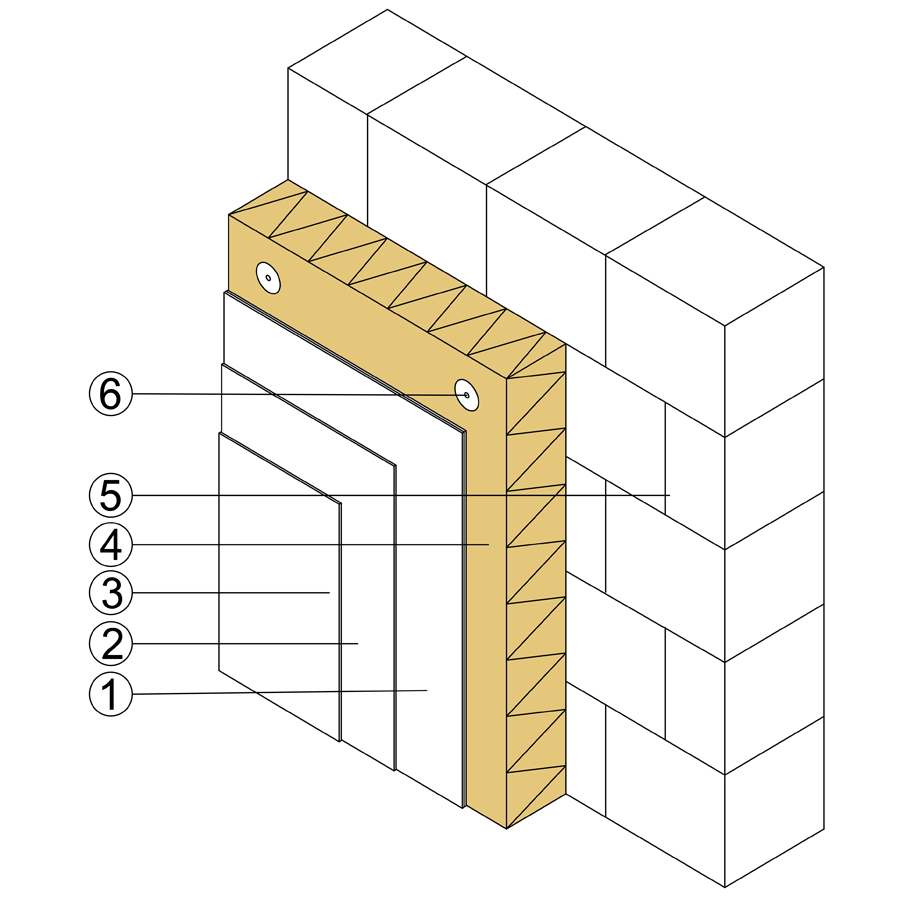

Layer description:

1. Lime-sand plaster 10 mm on 10x10 mm glass fibre mesh
2. Lime finishing 2 mm
3. Silicate paint
4. VestaEco WALL 120 mm
5. Mortar glue 10 mm
6. Aerated concrete block wall 240 mm
7. LMX-10 screws 6 pieces/m2
8. XPS insulation 120 mm, height 50 cm
